Clear Vision PRO - Setup Guide

Clear Vision Scope PRO - Setup Guide

Battery Information:

This unit requires 18650 batteries.

Make sure they are "button top" style as displayed below. The size battery we recommend is roughly 2.55-2.63 inches (65mm-67mm) and is 3.5V - 3.7V.

PURCHASE BATTERIES FROM OUR WEBSITE:

https://www.securelyfe.com/products/battery-bundle-charger-memory-card-clear-vision-scope

1. Turn On: The first step is to push the battery compartment switch to "ON", and the second step is to press and hold the "On/Off" button on the back of the display for 3-5 seconds.
2. Shut Down: The first step is to press and hold the “On/Off” button on the back of the display for 3-5 seconds. The second step is to push the battery compartment switch to "OFF".

WARNING: If you shut down the power supply without holding down or long pressing the ON/OFF button on the display first, the pictures and movies files may become corrupt or damaged.

Power-on steps (reverse power-off)

Step 1: Push the switch to the “ON” position to turn on the power.

Step 2: Long press the “On/Off ” button for 3-5 seconds to turn on the display.

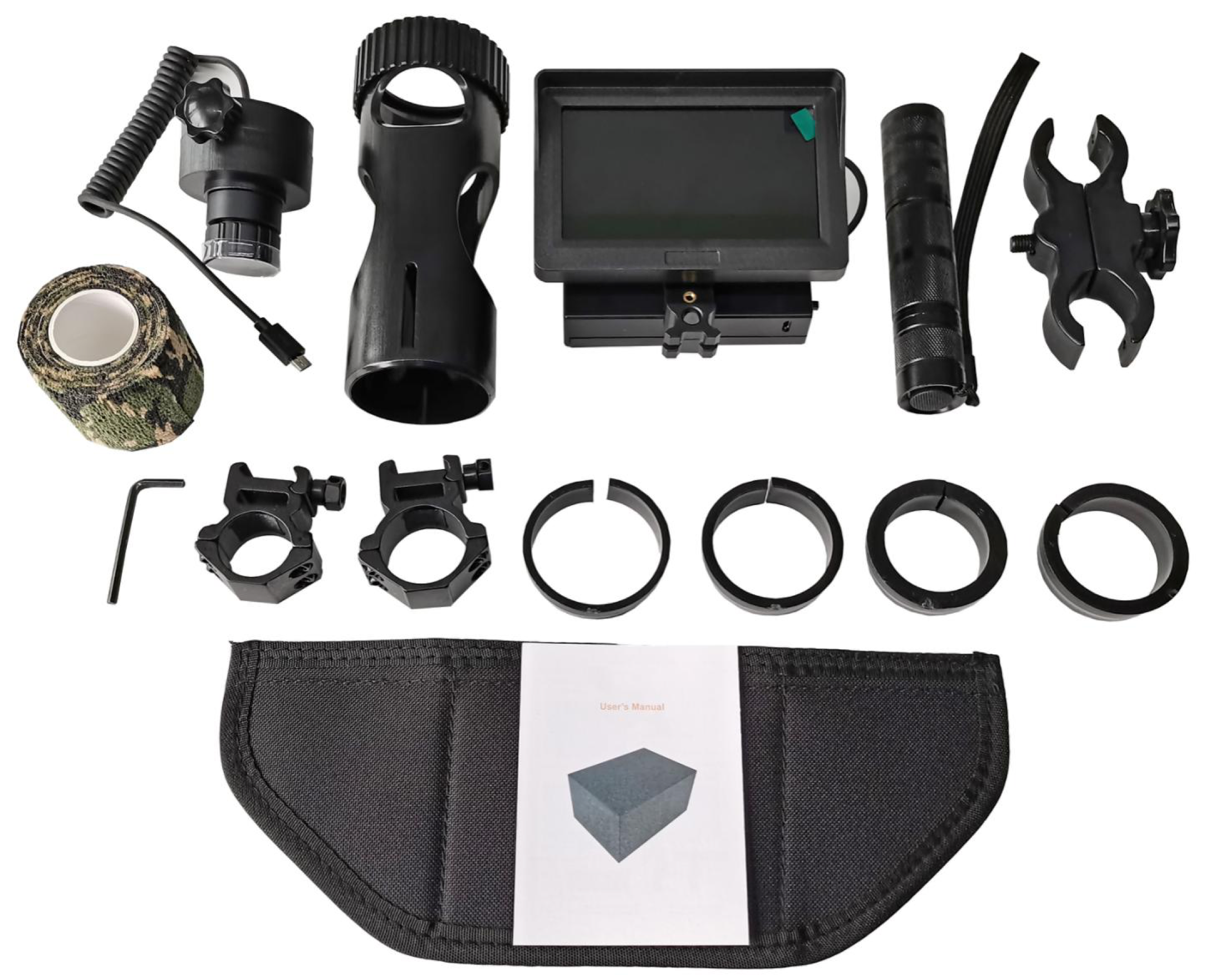

What is included in the package?

• 1 x Infrared Camera
• 1 x Camera Tube
• 1 x 4.3-inch Display
• 1 x850nm Infrared Flashlight
• 1 x Infrared flashlight mount
• 1 x Camouflage Wrap
• 1 x Hexagon Tool
• 1 x 25.4mm Ring Mount
• 1 x 30mm Ring Mount
• 4 x Adapter Rings [inner diameter 40/42/45/48mm]
• 1 x Screen Shade [detachable]
• 1 x Instruction Manual

SPECIFICATIONS

How do I connect the cables?

Please connect the display cable to the interface above the battery compartment; the camera cable is connected to the interface under the battery compartment.

• The display cable is connected to the interface above the battery compartment.
• The camera cable is connected to the interface under the battery compartment.

How do I connect the camera tube?

Installation Guide

1. Put (2) 18650 batteries into the display and (1) 18650 battery into the flashlight.
2. Install the display and Laser flashlight on the telescope with the mounts.
3. Fix the camera tube in the rear of the eyepiece of the telescope.
4. Turn on the device and rotate the lens of the camera (inside the tube) to adjust the focus to get the sharp image.
5. In the future application, if the image is blurred caused by the different distances of the objects, the image shall be clarified by adjusted the mounting position to change the distance between the camera and the telescope.


DISPLAY BUTTONS

The buttons on the back of the display screen have multiple functions. The buttons can either be pressed down quickly for a specific function or they can be pressed and held down for another function. Please see the description below for further detail.

Button 1: On/Off/Down Arrow (Left)
SHORT PRESS - Down button
LONG PRESS - Power ON /OFF

Button 2: Ok/Menu (Middle)
SHORT PRESS - OK button
LONG PRESS - Menu

Button 3: Up Arrow (Right)
SHORT PRESS - UP

Button 4: (Photo)
SHORT PRESS - Take Photos
LONG PRESS - View Photos

Button 5: (Video)
SHORT PRESS - Video Record Start/Pause
LONG PRESS - Video Playback

How To Insert Batteries:

FRIENDLY OPERATION MENU

NIGHT MODE

Note: When using at night, the switch on the back of the camera must be switched to night mode (can be switched left and right), the infrared flashlight can only be effective in night mode.

CLARITY ADJUSTMENT

To get sharp and clear image, you can adjust as followings(make sure to switch the camera to night mode:

① Adjust the camera tube distance.
② Rotate the wheel of the camera.
③ Turn on the IR flashlight.
④ Adjust the focus to get right IR light distance.
⑤ Adjust the position of the IR flashlight back and forth.
⑥ Adjust the camera distance.
